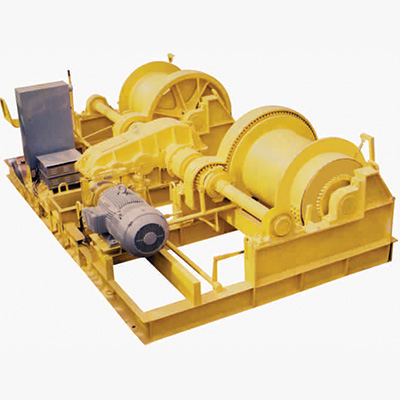

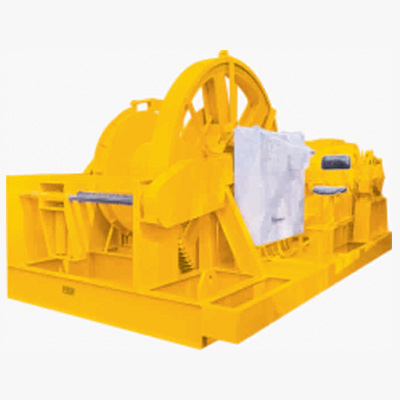

ELECTRIC WINCH

With Slip-ring motor & Automatic OR Manual / Joystick Control Panel
With Sq.- Cage motor & D.O.L. Panel
With Sq.- Cage motor & VVVFD Panel having variable Rope speeds.
Creep – speed arrangement by Gear Box or VVVFD
Rope Guide arrangement
Load Indicator with immediate trip arrangement on over Load.
Rope length measuring arrangement
Auto trip on increase in Drum rpm or rope speed.
Auto trip on rope slacking.
Radio frequency remote control to operate the Winch
De- Clutchable Drum.

WORK OVER / SERVICE RIG

Up to 30 Tons capacity, Tubular & Telescopic Mast up to 72 feet Height , Truck Mounted, Engine Driven, Clutch & Brake Pneumatically operated, also with Sub- Structure and Rotary Table Attachment, suitable for servicing of Oil Wells

DIESEL ENGINE WINCH

With De clutchable Drum.

Variable Speed arrangement.

Skid mounted / Trailor Mounted.

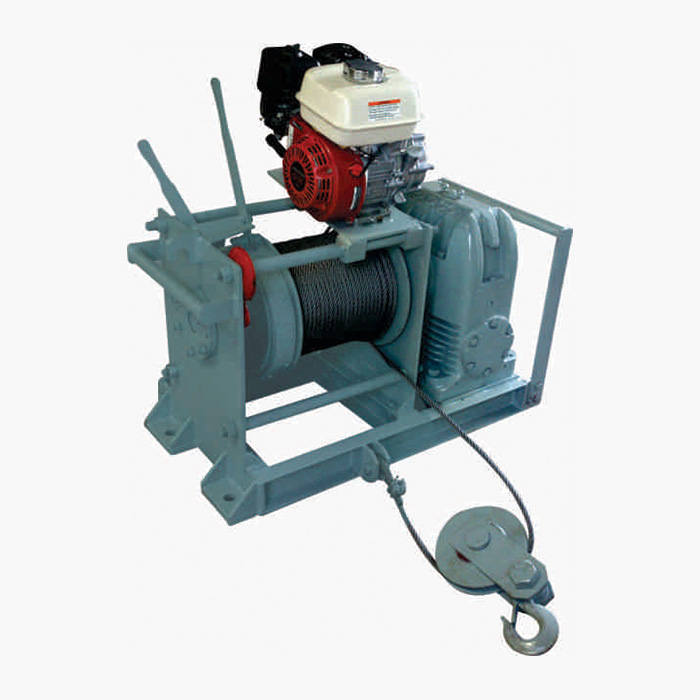

WINCH, SINGLE DRUM

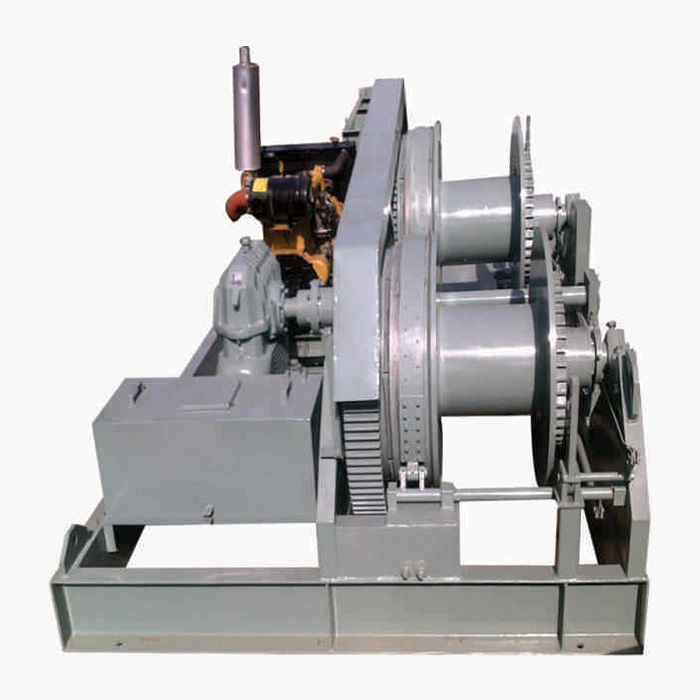

WINCH, DOUBLE DRUM

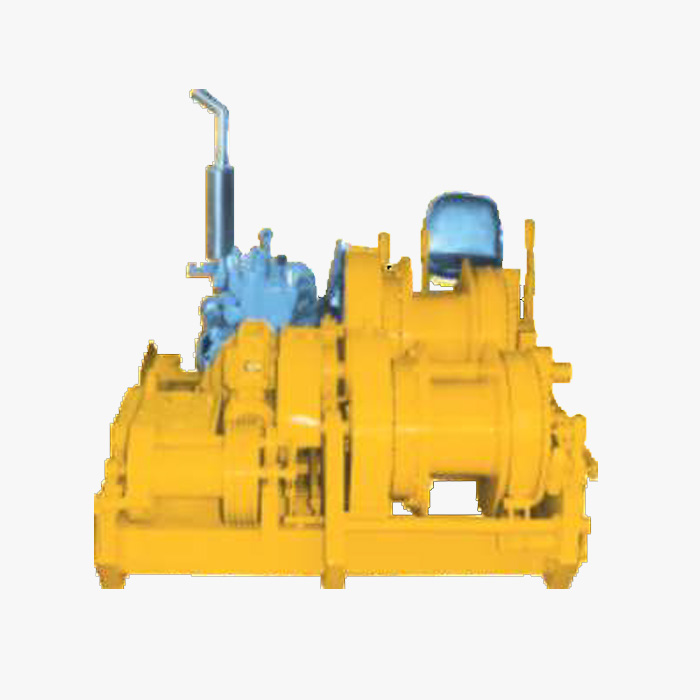

WINCH, TRIPLE DRUM

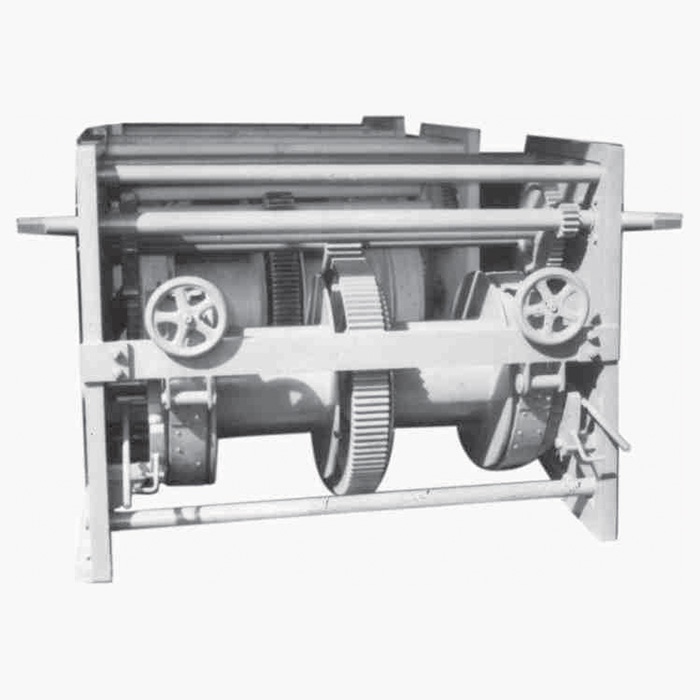

MANUAL WINCH

Single Drum/ Double Drum

Up to 20 Ton Capacity

EQUIPMENT FOR HYDRO-POWER PLANTS (DAMS)

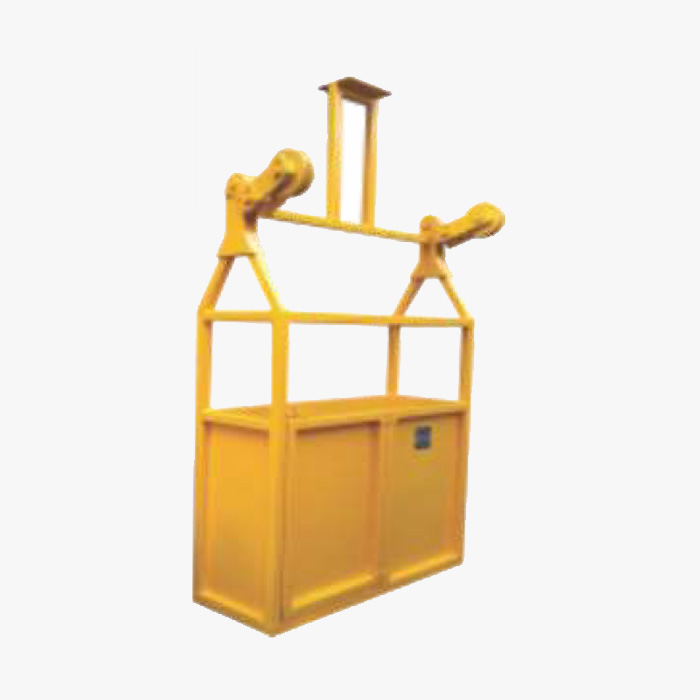

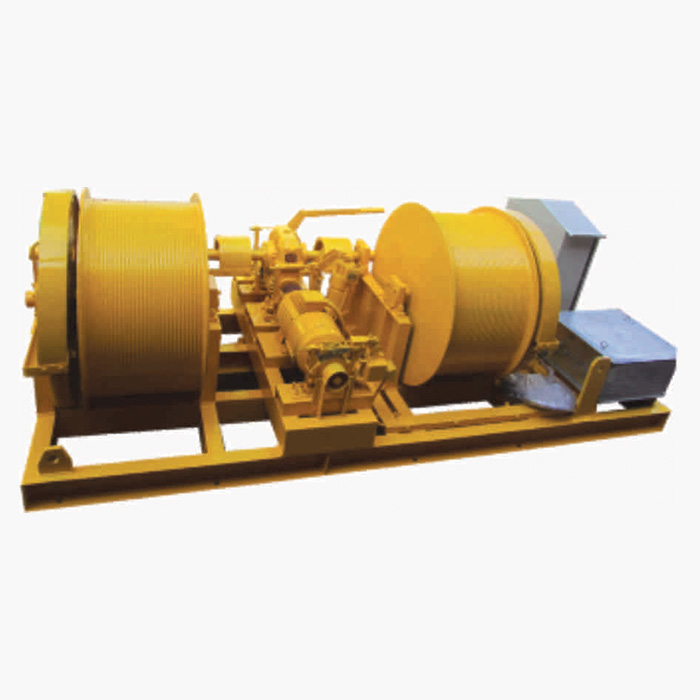

WINCH / HOIST WITH INSPECTION CAGE

Single Drum/ Double Drum For inspecting gate grooves during lowering of Gate Elements or in Case of Elements struck up in the Groove.
Single Drum/ Double Drum For Inspection and maintenance of Tail Race Tunnels.
Single Drum/ Double Drum For Inspection & maintenance of vertical Portion of Penstock steel liner, etc.

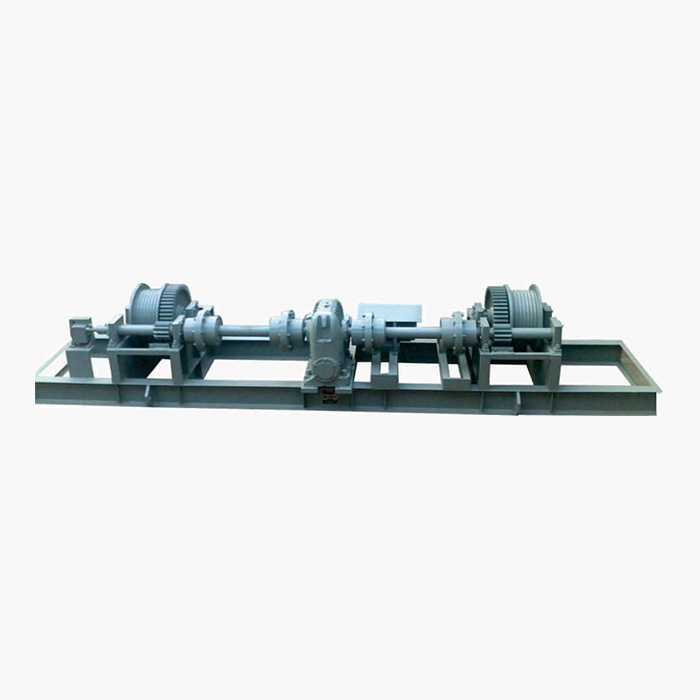

WINCH / HOIST, DOUBLE DRUM

For Opening & Closing of Bye – Pass Gates,Intake Gates, Draft-tube Gates Etc.

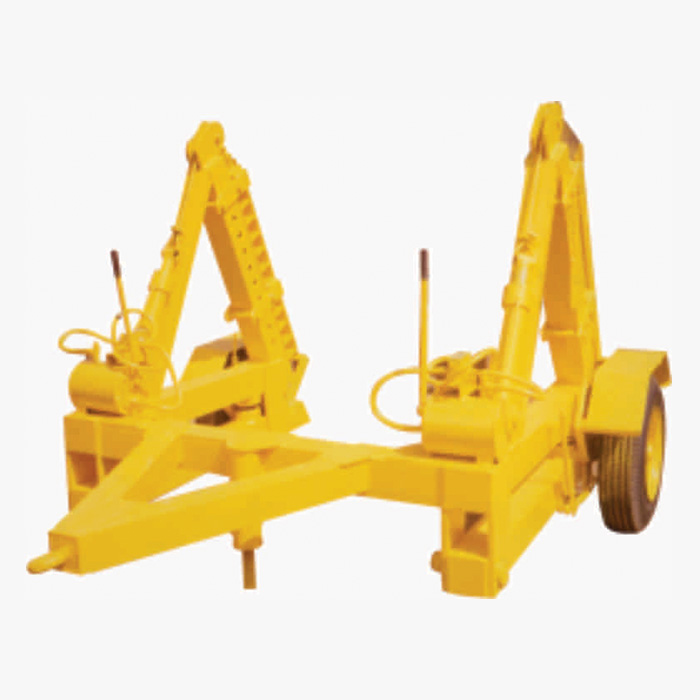

CABLE REEL TRANSPORTATION CARRIER

Capable to Carry Cable Reels upto 15 Tons of weight & 3000mm diameter, for transportation and Decoiling of Cable Reels.

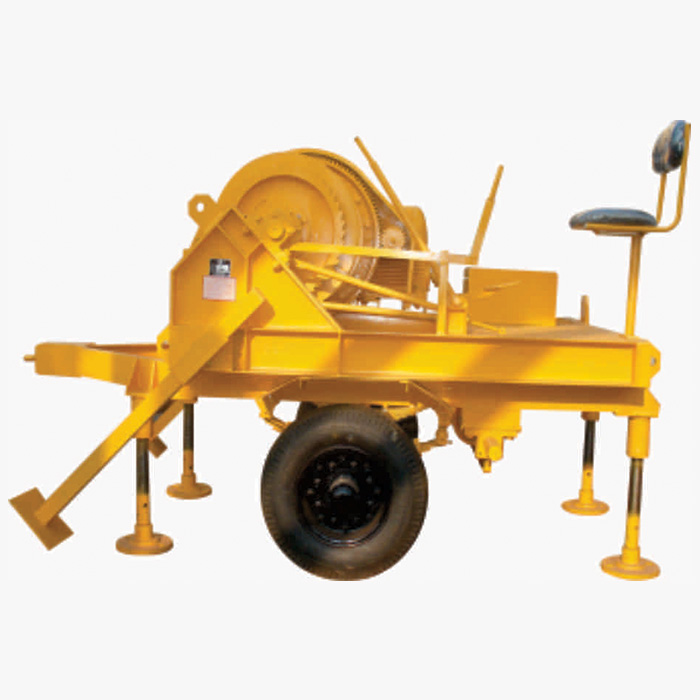

CABLE PULLING WINCH

Electric/Engine driven, Mounted on two wheel trailer with leveling jacks, Anchoring arrangement and Digital type load indicator.

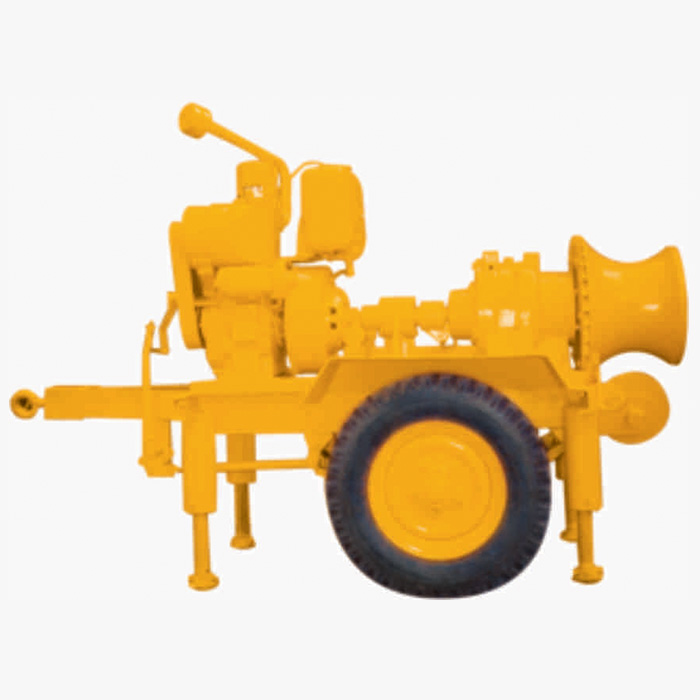

CABLE PULLING CAPSTAN

Electric/Engine driven, Mounted on two wheel trailer with leveling jacks, Anchoring arrangement and Digital type load indicator.

EOT (Electrical Overhead Travel)CRANES, GANTRY / GOLIATH / SEMI – GANTRY CRANES

WITH FOLLOWING FEATURES ARE MANUFACTURED -

Capacity: Up to100 Tons,
Easy to install. Ensures maximum rigidity with a minimum dead weight
Compact dimensions, Low weight, easy to operate and maintain
Supply includes supervision of installations, training for operations and maintenance, and after sales services
Higher efficiency to save power
Creep speed for all motions through VVVFD with suitable interlocking.
All motions are protected with limit switches to prevent over hoisting, over lowering of hook, over travel in CT & LT Motions.
Platform with hand railing for easy, simple & safe maintenance of the crane
Option for Pendent, Radio frequency Remote Control or cabin operation.
Load indicator with immediately trip arrangement on over load.
Auto trip on rope slacking
Auto trip on increase in Drum rpm or Rope speed.

GANTRY CRANE

Upto 50 Ton Lifting Capacity, Span upto 30 mt..

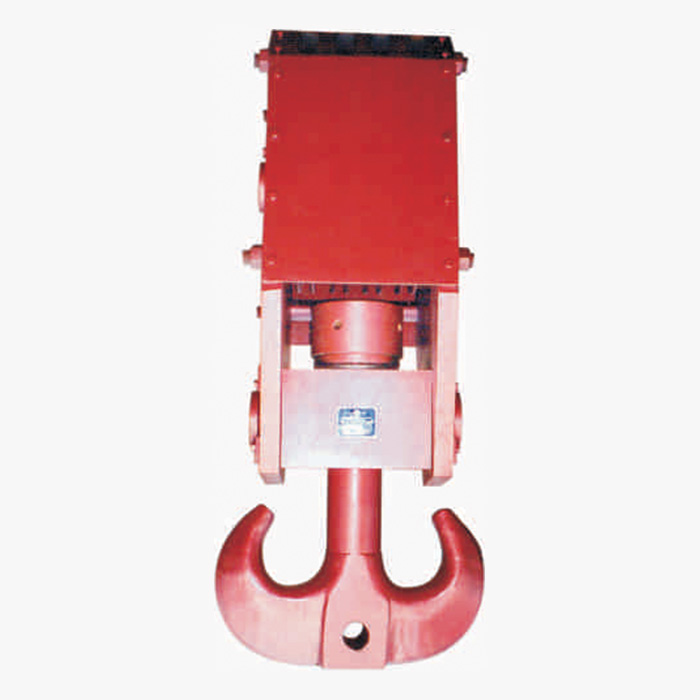

SHEAVE PULLEY BLOCK

Heavy duty, Up to 100Ton Capacity, with Hooks as per Customer Requirement.

EOT CRANE

With Main/Auxillary Hoists upto 50 Tons Capacity.

HAULAGE, ELECTRIC

High Speed, up to 150kw for Material Handling in Mines.

CAPSTAN

Hevy Duty, Single or Double speed, Vertical, for Pulling / Docking of Ships

MONKEY LIFT

Model and main features of monkey lift.

Particular	Model No. M/W500	MW/350	MW/250
Weight	500 kgs	350 kgs	250 kgs
Speed /mts/min	16 to 18 mts	15 to 16	18 to 20
HP of Motor	3/5	2	2
Height	up to 250 ft	up to 250 ft	up to 250 ft
Boom lenght	8 ft	8 ft	6 ft
Total height	7.5 ft.	7.5 ft.	7.5 ft.
Wire rope size	8/10 mm	8 mm	8 mm

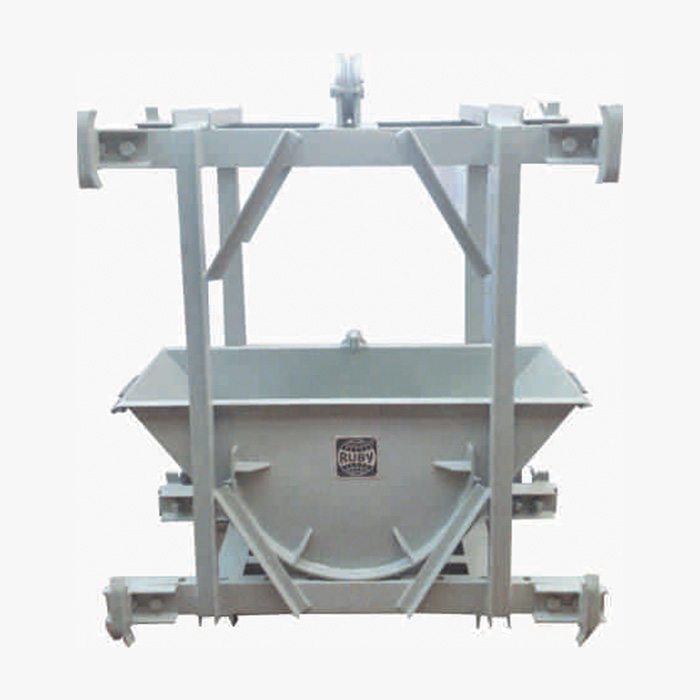

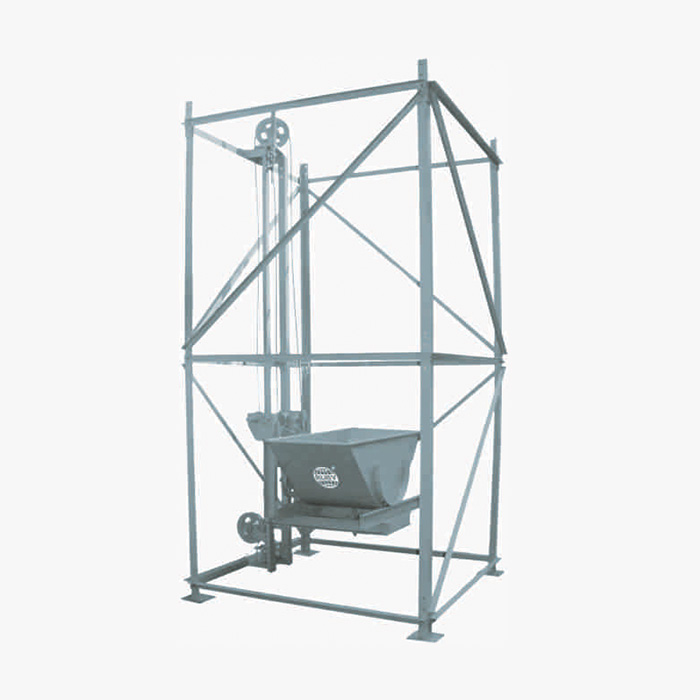

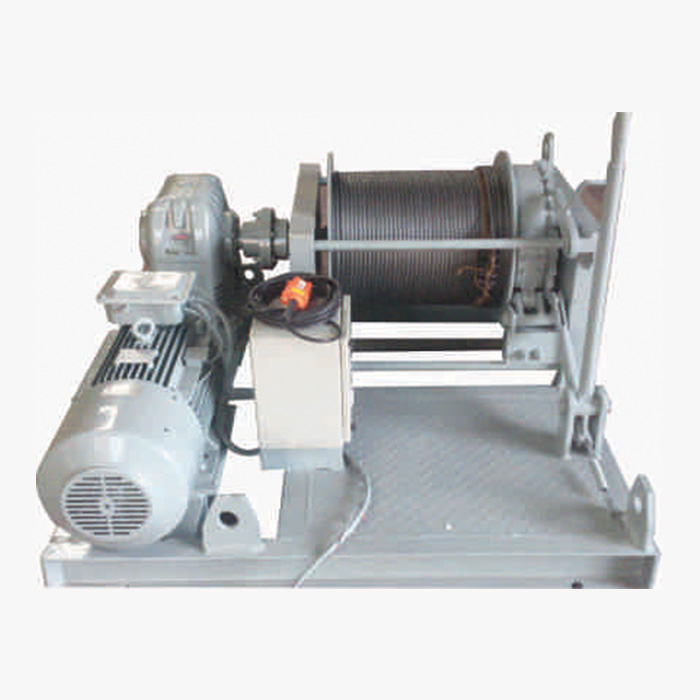

BUILDER HOIST

BUCKET:	M.S. Fabricated.
STRUCTURE HEIGHT:	Upto 450 ft.
STRUCTURE:	Made of ISMC, ISA, Bolted type.
WINCH :	Electrically operated, single Drum, Reversible. Heavy duty, skid mounted
TESTED AT:	25% overload, TC issued
BUCKET SPEED :	30 to 40 mt. per minute.
SKID:	Fabricated of ISMC. chequered plate, with gussets, lifting lugs, grouting holes, stiffners for extra safety
DRUM:	Heavy duty, M.S. fabricated ,with side flanges.moving on antifriction bearings, housed in Steel Brackets.
GEAR BOX:	Totally enclosed, oil splash lubricated. worm and worm wheel/ helical type.
ELECTRIC MOTOR:	Sq. cage, TEFC, 3 phase, 50 cycles. AC. as per IS 325.
CONTROL PANEL:	With single phase preventor. overload relay, MCB, of L&T , Minilec, BCH make housed in powder coated sheet metal cabinet.
WIRE ROPE:	of suitable size and with F.O.S.=5, fmc. 6x36 or 6x19 const, with 4 bull dog grips, one rope thimble.
BRAKE:	Fail safe, EHT or Disc Brake.
PULLEYS:	Steel / cast steel, moving on antifriction Bearings.
PAINTING:	Synthetic, after redoxide coating.
WARRANTY :	One year against bad workman ship or manufacturing defects.

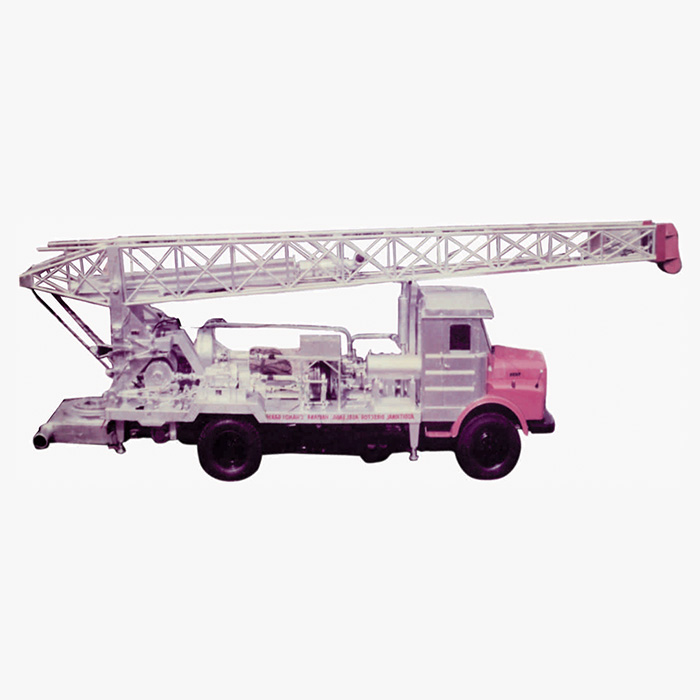

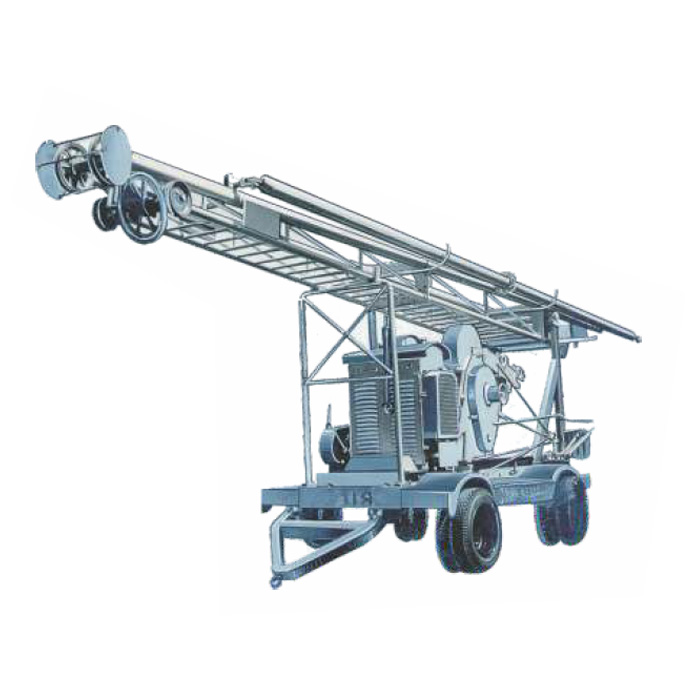

REVERSE CIRCULATION WATER WELL DRILLING RIG

Truck or Trailor mounted for Bore Dia16 “to 40”, Depth 305 Mtr. in Aluvial strata.

PERCUSSION TYPE WATER WELL DRILLING RIG

Used in rocky areas, for Bore Dia 6” To 27” Casings, 1000kgs To 6000kgs Tool weight handling Capacity. Drilling, Extraction, Lowering Tools are also manufactured.

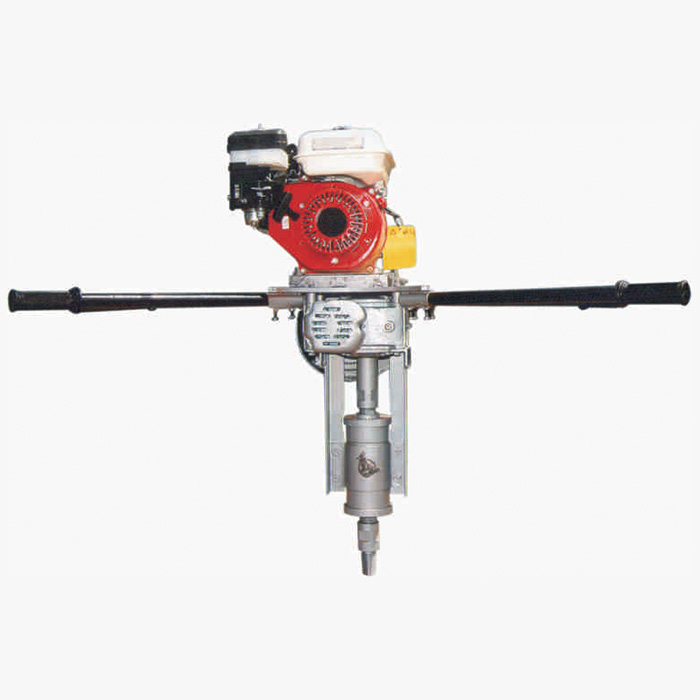

CORE DRILLING MACHINE

Portable, Engine driven, for Bore Dia 3”, Depth 40mts.

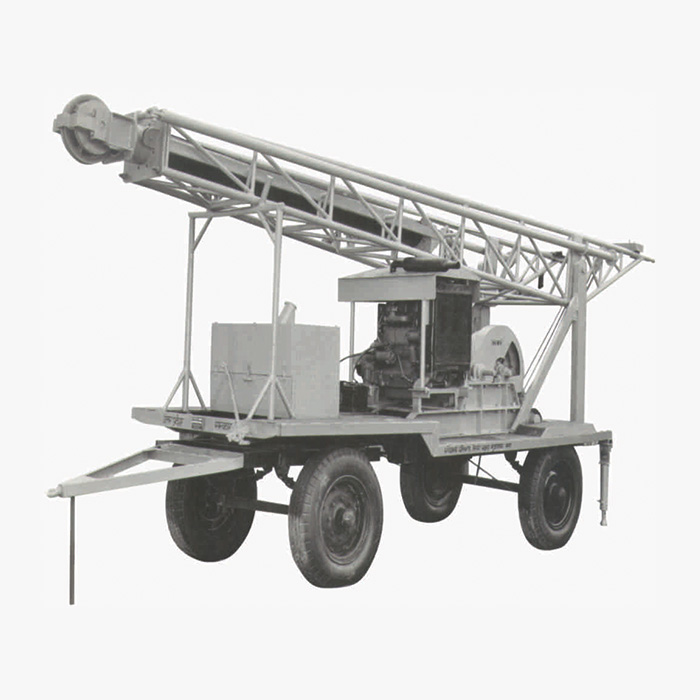

SKID MOUNTED WINCH

Diesel Engine Driven,Mounted on 4 Wheel Trailor with Jacks, Tubular Mast Suitable for Pilot and Shallow Wells/ Pump Handling.

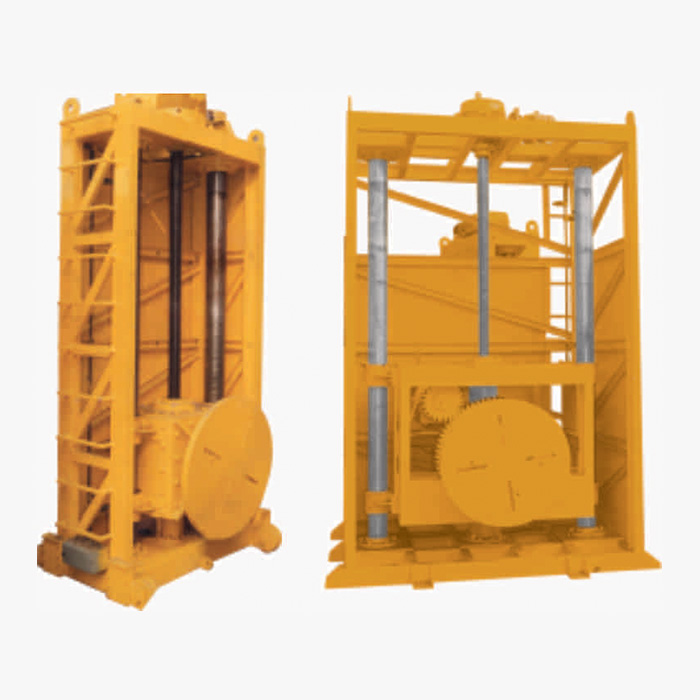

LIFTING AND TURNING DEVICE

Consisting of two independent jacks, 16Tons/10Tons/ 5Tons capacity used for positioning of jobs during fabrication & welding. The job can be moved up/down and rotated through 360 degrees on horizontal axis.

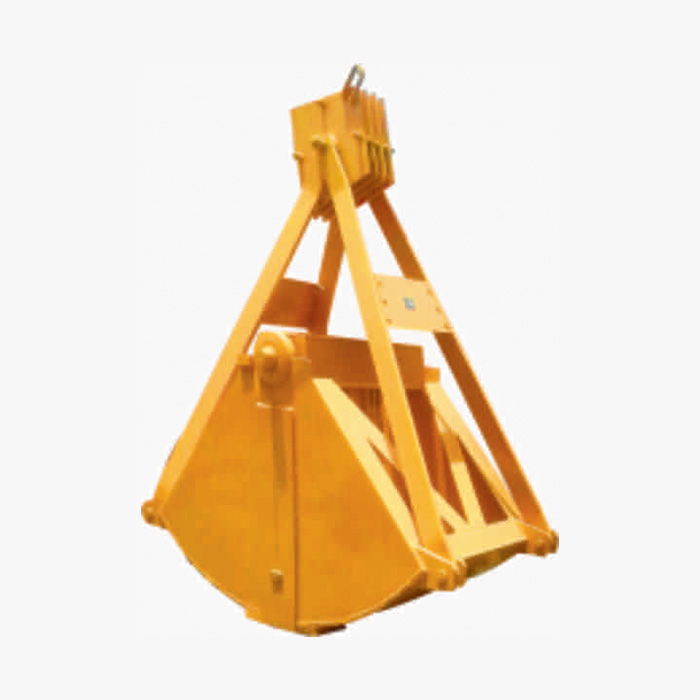

DOUBLE ROPE GRAB BUCKET

0.5 Cubic Yd To 4.0 Cubic Yd, Heavy Duty, all steel construction.
